Pressure Switches: Operation & Purpose

HVAC Pressure Switches

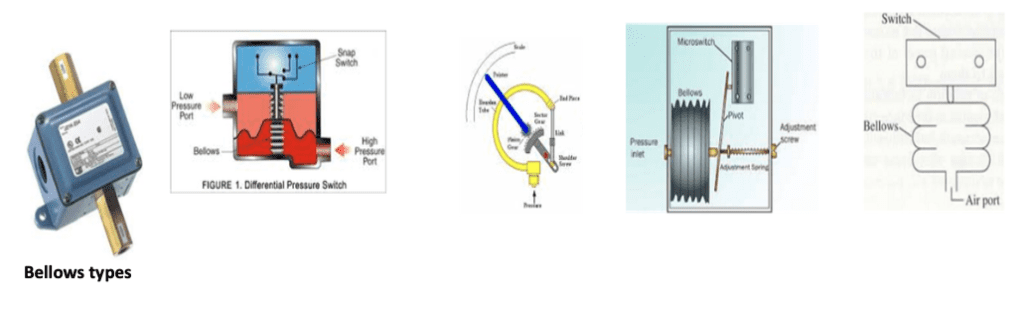

How do the HVAC pressure switches operate? A pressure switch for sensing fluid pressures(gas or liquid) contains a capsule, bellows, Bourdon tube, diaphragm, or piston element that deforms(changes shape), or displaces fluid proportionally to the applied pressure. The resulting motion is applied, either directly or thru amplifying levers (cantilevers), to a set of switch contacts.

Since pressure may be changing slowly and contacts should operate quickly, some kind of over-center mechanism, such as a miniature snap action switch (Micro Switch), is used to assure quick operation of the contacts.

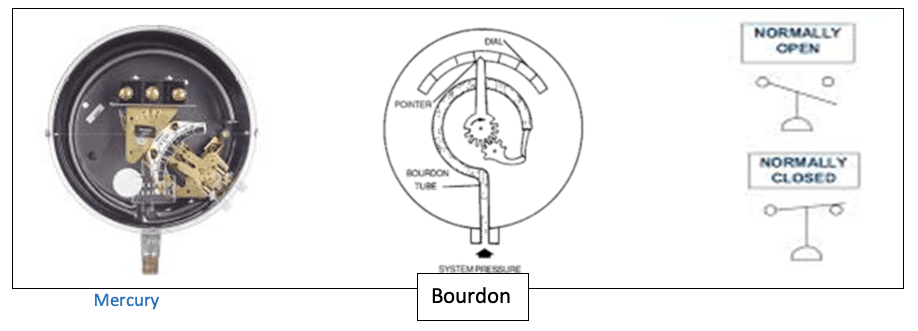

One sensitive type of pressure switch uses mercury switch contacts mounted on a Bourdon tube, the shifting weight of the Mercury provides a useful over center characteristic, (sort of like an off center fulcrum teeter-totter).

HVAC and Plumbing Distributor

The pressure switch may be adjustable, by moving contacts, or adjusting tension in a counter balance spring. Industrial pressure switches may have a calibrated scale and pointer to show the set-point of the switch. A pressure switch will have a differential range around its set point in which small changes of pressure do not change the state of the contacts. Some types allow adjustment of the differential setting.

HVAC Pressure Switches HVAC Supply House

Most pressure switches utilize a set of contacts that can be tested with an Ohm-meter to ascertain if the contacts are open, closed, or in-operable. An ohm meter reading of Infinity, or O.L. indicates open contact; an ohm reading of 0, or 1 ohm indicates closed contact; if no change to the contact position when pressurized, then an in-operable relay condition exists.

Since pressure switches are used to control other circuit devices, or used as a protective device, it is necessary to prove that they are functioning correctly.

Proper use of an ohm-meter and calibrated pressure gauge will determine if the pressure switch is operating correctly.
