Thermocouple & Flame Rectification Sensor

Bubba Moore

Bubba Moore

Technical Services Manager
Southeast District

Thermocouple & Flame Rectification Sensor

A thermocouple is a safety device that is used on gas furnaces where the pilot is lit continuously, whether the main burner is on or off. The flame rectification sensor is a safety device used in high efficiency furnaces that use direct burner ignition. The thermocouple is used in older furnaces and is being phased out because of the inefficiency of the pilot burning all the time. The higher efficiency furnaces only have a flame burning when there is a demand for heat which improves the efficiency of the furnace.

Thermocouples are used with a 100% shutoff gas valves. When there is insufficient pilot flame or a defective thermocouple, all gas is shut off through the main valve. When the pilot is heating up the thermocouple it produces a small DC voltage. This DC voltage energizes a solenoid in the gas valve that holds the safety valve open to keep gas flowing to the pilot. If the pilot goes out, the thermocouple cools and the voltage generated drops to zero. This causes the safety valve to close, shutting off the gas flow to the pilot and main gas valve. There are things to check before replacing the thermocouple. Look for a yellow pilot flame, pilot flame too small or low, misdirected pilot flame, a pilot flame that is flickering, pilot flame that is floating away from the thermocouple, or a pilot flame that is lifting away. Also inspect the thermocouple to see if it is bent, the lead is kinked, insulator is damaged, or thermocouple contact end is dirty.

HVAC and Plumbing Distributor

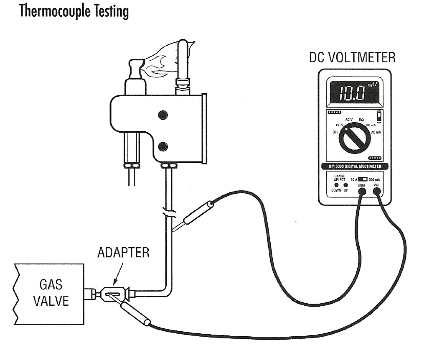

The thermocouple can be tested under load or no-load conditions using a volt ohm meter or a digital multi meter. To test a thermocouple under load, you will first unscrew the thermocouple and install a thermocouple test adapter, then screw the thermocouple into the adaptor. Connect one-meter lead to the adaptor and the other to the copper of the thermocouple. Make sure that your meter is set to the lowest DC millivolt setting. With the pilot burning for at least five minutes, the DC millivolt reading should be nine millivolts or higher. If not, the thermocouple is defective and needs replacing.

HVAC and Plumbing Distributor
THERMOCOUPLE TEST – UNDER LOAD

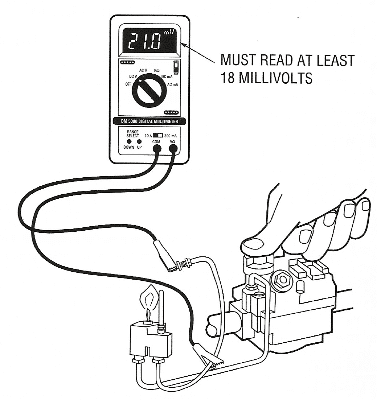

To perform the no load thermocouple test, no adaptor is needed. Connect one of your meter leads to the tip of the thermocouple that goes into the gas valve, the other lead connects to the copper of the thermocouple. With the pilot burning for at least five minutes, the DC millivolt reading should be eighteen millivolts or higher. The thermocouple is defective and needs to be replaced if the reading is below eighteen millivolts.

HVAC and Plumbing Distributor
THERMOCOUPLE TEST – NO LOAD

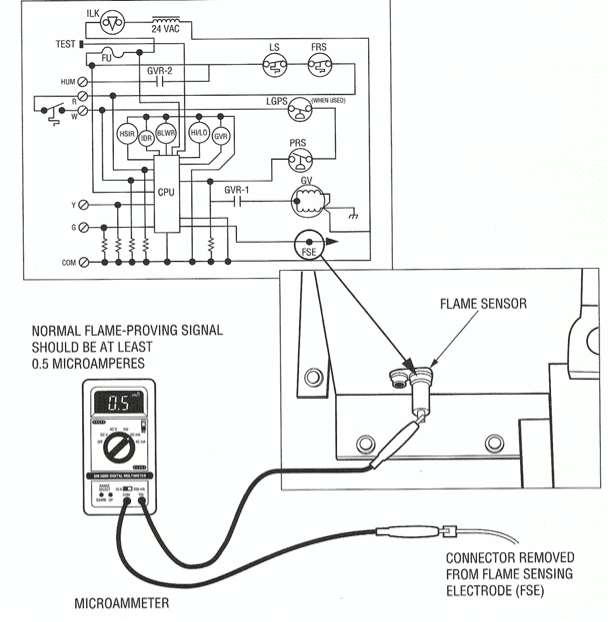

The flame rectification sensor is used in high efficiency furnaces that do not use a pilot flame. These furnaces use a hot surface ignition or direct spark ignition to light the main burners. The flame rectification sensor, also called flame sensing electrode or flame rod, is used to detect that the main burner flame is lite. As the burner flame passes across the flame rod, the hot gas ionized particles conduct electricity and completing a circuit through the flame rod to the furnace control. This current flow signals the furnace microprocessor to keep the gas valve energized.  To test the flame rectification sensor, a meter that can measure DC microamps will be connected in series with the sensor. With the burners lit, the sensor input to the microprocessor should have a current of at least 0.5 microamps DC, though some furnaces may have a higher or lower flame sensing current. If the flame sensing current is low or not there, look to see how the flame rod is positioned in the burner flame. Check to see if the furnace is properly grounded per manufacturer’s instructions, the gas valve is grounded through the gas valve ground wire, connection at the sensor is good, and there is no oxide film coating the flame sensing electrode. If there is a coating on the electrode, clean with a fine abrasive. These are the most common problems to look for when troubleshooting the flame proving signal.

HVAC and Plumbing Distributor

The thermocouple and flame rectification sensor are two ways of proving a flame. One has a flame burning all the time to allow proper operations, and the other needs a flame to be lit to confirm there is a flame for proper operations.

Sources: HVAC  Servicing Procedures Manual
